Case Study 2

Thermographic investigation for electrical facilities:
Generally: The investigation of electrical equipment is used with priority for maintenance work and for the risk analysis of the operating regime of these plants and facilities. Important to say, these investigations provide

These investigations serve the fire and fire protection! Insurance uses the results among other things for object evaluation during the policy preparation.

These inspections covered i.e.

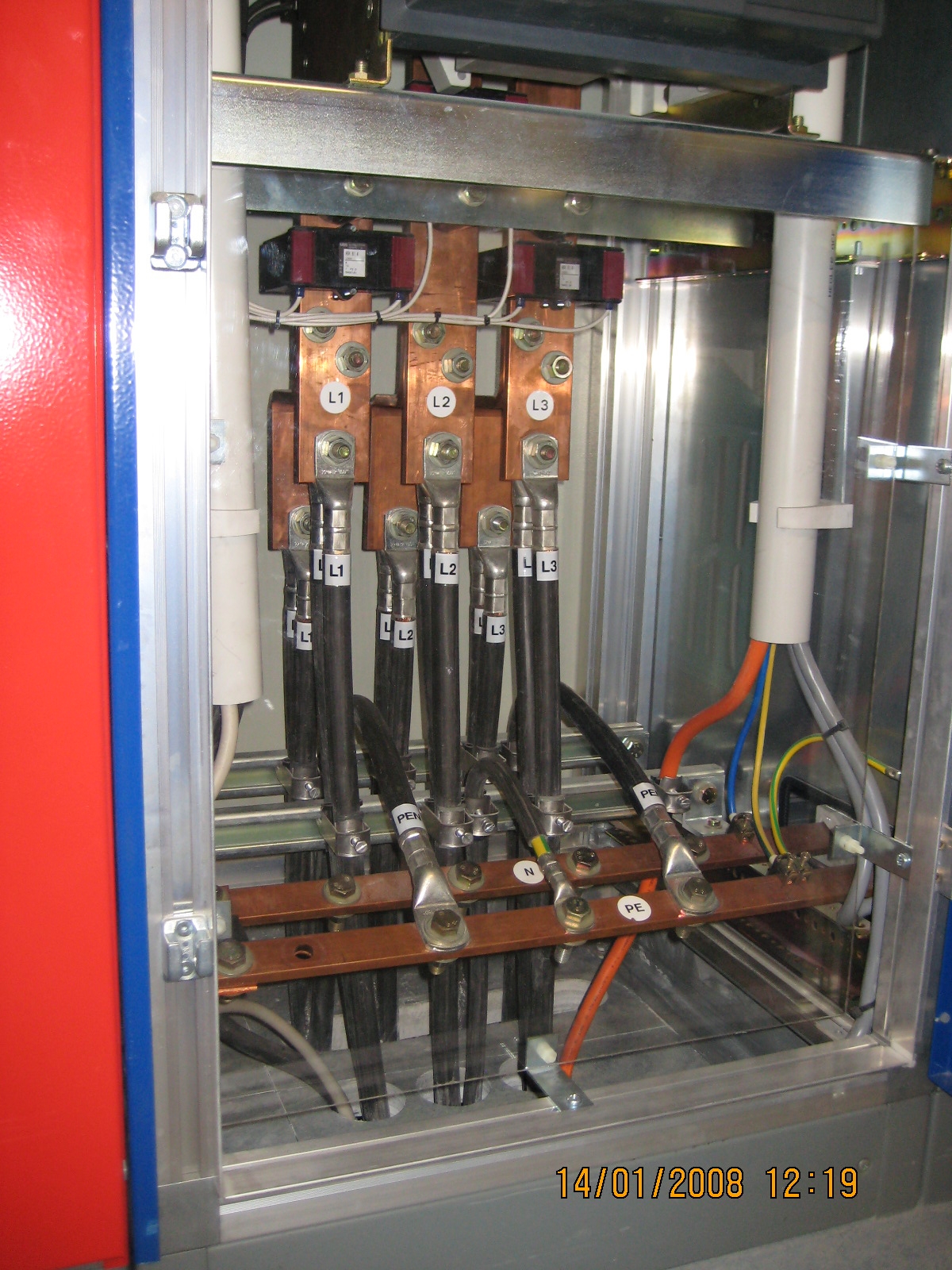

• Distribution plants
• Switchgear cabinets

• Cable routes

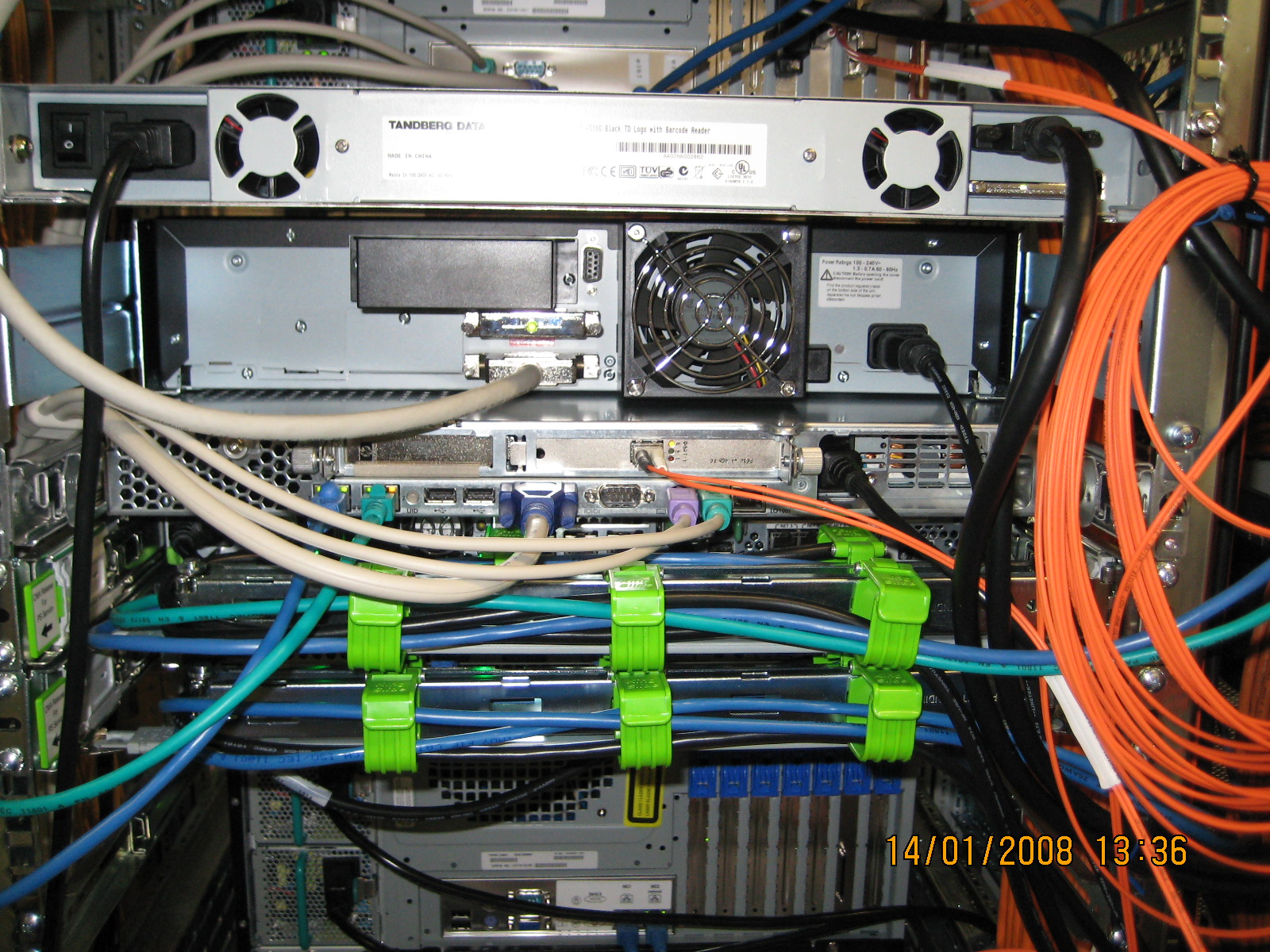

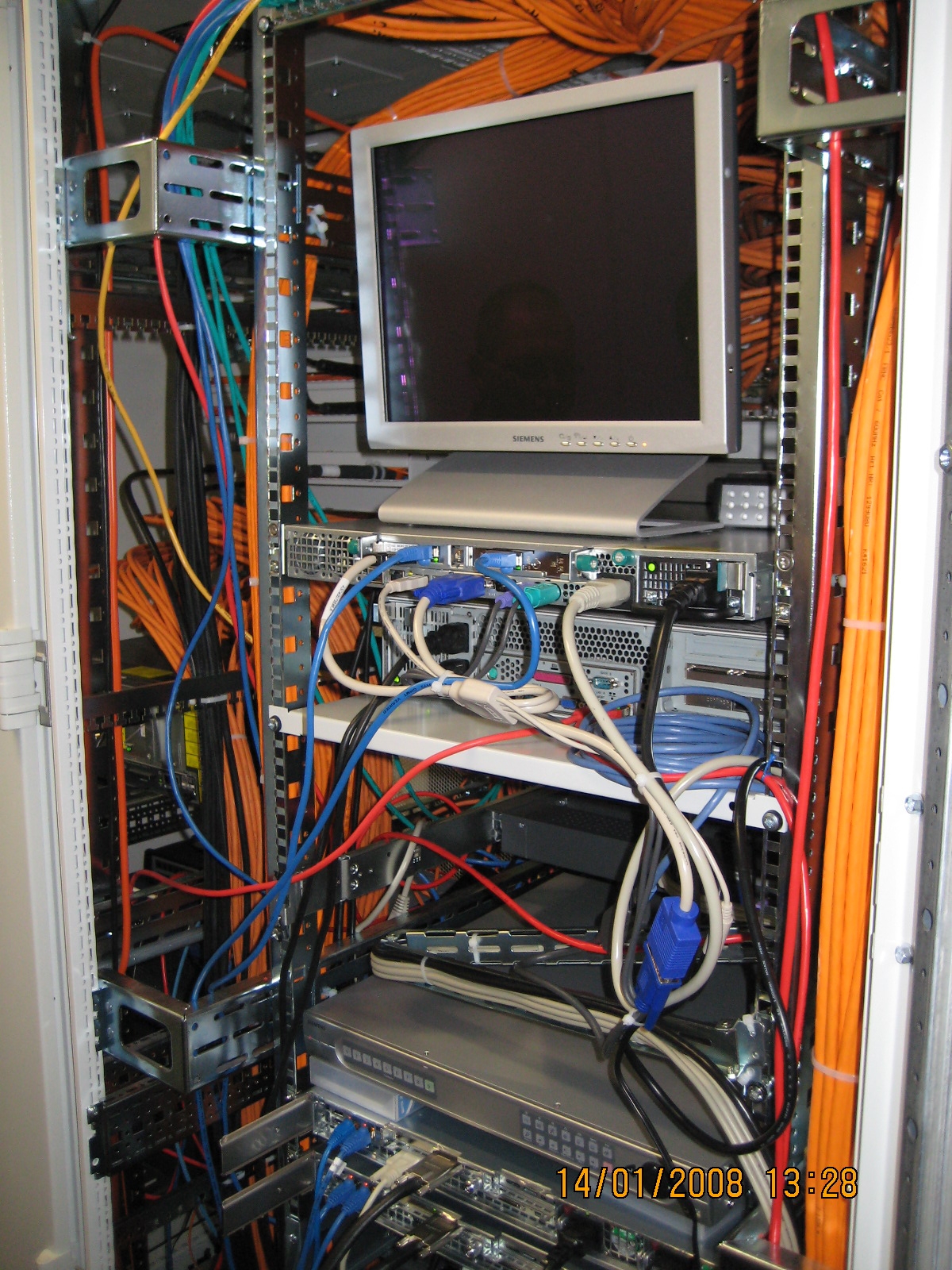

• Server rooms etc.

The measured components were defined by Mr. Heiko Zwieg.

The actual condition was measured.

The evaluation of the inspection results is divided in 3 error classes.
Error class 1 - Regular control and maintenance are recommended
Error class 2 - Repair necessarily
Error class 3 - Repair would immediately drive through

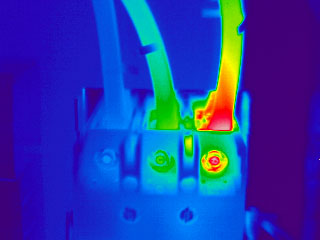

The recognized warm and defective equipment are specified on the following pages – see the report in the gallery below.
